Facial Tissue Wrapper, TP-T180/T280
Automatic Wrapping Machine for Folded Paper Towel (Individual Pack)
TP-T180/T280 tissue wrapping machine is particularly designed to automatically wrap folded facial tissues, folded paper towels, V-fold napkins, paper serviettes, multifold hand towels, and other folded tissue products into individual pack utilizing plastic films.
TP-T180
100 packages/min
Output
12kW
Total power
Length: 95-210mm
Width: 80-115mm
(extendable to 150mm)
Height: 30-100mm
Width: 80-115mm
(extendable to 150mm)
Height: 30-100mm
Packaging dimension
TP-T280
110 packages/min
Output
12kW
Total power
Length: 95-180mm
Width: 80-115mm
Height: 30-100mm
Width: 80-115mm
Height: 30-100mm
Packaging dimension

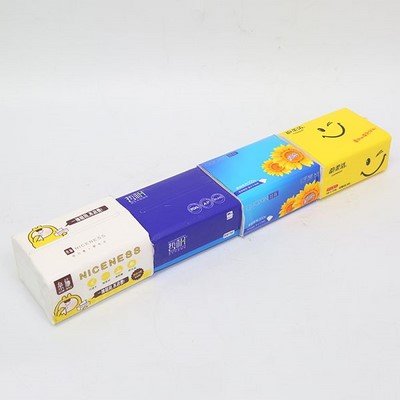

Packaging Style
Examples
Specifications
| Tissue arranging and feeding mode | Smart automatic tissue arranging, 4-section flexible feeding mode |
| Total power | 12kW |
| Quantity of molds | 3 sets in standard configuration (according to customer-specific package size) |
| Machine weight | ≤3000kg |
| Packaging material | CPP, PE film |
| Film thickness | 0.35-0.05mm |
| Max. diameter of film roll | 500mm |
| Film core diameter | 76mm (international standard) |
| Compressed air | Air source: ≥0.5MPa (prepared by user) |
| Power supply | 380V/50Hz (According to national standard) |
Features
- Tissue arrangement and infeed speed are controlled by inverter, and servo motors are used to assure precise film perforation, film tensioning /positioning, film cut-off, tissue centering and feeding, providing high efficiency and ease of use;
- The design of smooth movement enables the machine to run stably at high speed, ensuring easy operation and maintenance;
- Wide range of specifications, quick size changeover;
- Photoelectric sensor is used for product detection, achieving "No Tissue Paper, No Film" and greatly saving wrapping materials;
- Automatic arranging and feeding system can work together with automatic production line, significantly lowering labor cost;
Diagram
