Toilet Roll Wrapper, TP-B30RE
Automatic Packaging Machine for Toilet Paper Roll (Bundle Pack)

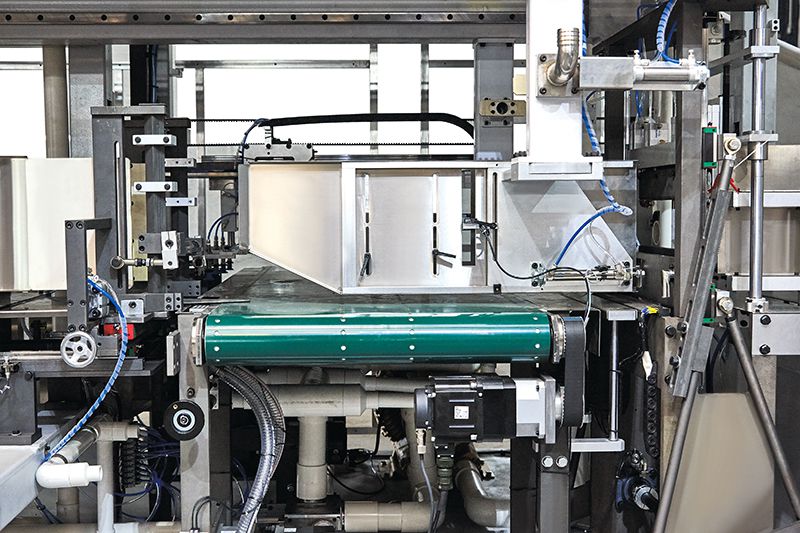

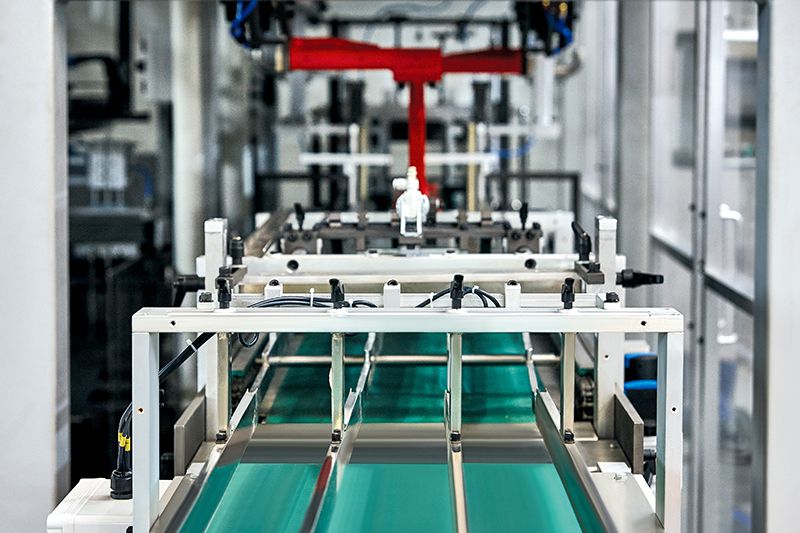

TP-B30RE toilet paper roll packaging machine is typically designed for automatic multi-packing of both core and coreless toilet paper rolls and kitchen tissue rolls. Servo drives are adopted to control operations including tissue roll arranging, counting, insertion rolls into bag and bag conveying, providing ease of operation and simple maintenance.
20 packages/min
Output
25kW
Total power
Length: 300-690 mm
Width: 160-440 mm
Height: 80-280 mm
Packaging dimension
Width: 160-440 mm
Height: 80-280 mm
Packaging dimension
Dimension of Individually Wrapped Tissue
Packaging Style
Examples
Specifications
| Model | TP-B30RE |
| Application | Packaging of either core or coreless toilet paper rolls and kitchen tissue rolls |
| Dimension of individually wrapped tissue | Diameter: 80 mm-130 mm Height: 80mm-130 mm (error of single pack size ±2mm) |
| Feeding method | ASF automatic dual-lane/ three-lane feeding system |
| Design speed | 12-22 packages/min (depending on product size) |
| Working speed | 8-20 packages/min (depending on product size) |
| Package configuration (layer × row × column) | (1-3)×(2-3)× (4-6) |
| Tissue roll arrangement range | 80mm to 360mm |
| 160mm to 360mm | |
| 320mm to 690mm | |
| Gusset forming | Vacuum mold forming |
| Installation of packaging material | Bag racks mounted at both sides |
| Bag storage | ≤600 pre-made bags |
| Packaging material | PE, CPP film |
| Compressed air | Pressure 0.6MPa Air flow 300L/min |
| Power supply | 308V/50Hz |
| Total power | 19kW |
| Machine weight | 3400kg |
| Bag type | Pre-made bag |
| Servo control shafts | 10 shafts |
| System brands | Electrical control system: VEICHI, MITSUBISHI Temperature control system: YUDIAN Pneumatic system: SMC, AIRTAC |
| Optional | Ink roll coder, TTO printer |
Features
- Central vacuum supply is adopted for efficient reduction of power consumption;
- Intelligent heat sealing system, can accommodate various packaging materials while offering good sealing effect and high stability;
- Designed with various functions like automatic rejection of unopened bags, air source management, fault alarm and display, servo overload protection;

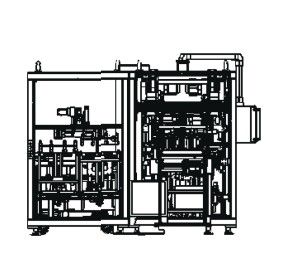

Diagram
