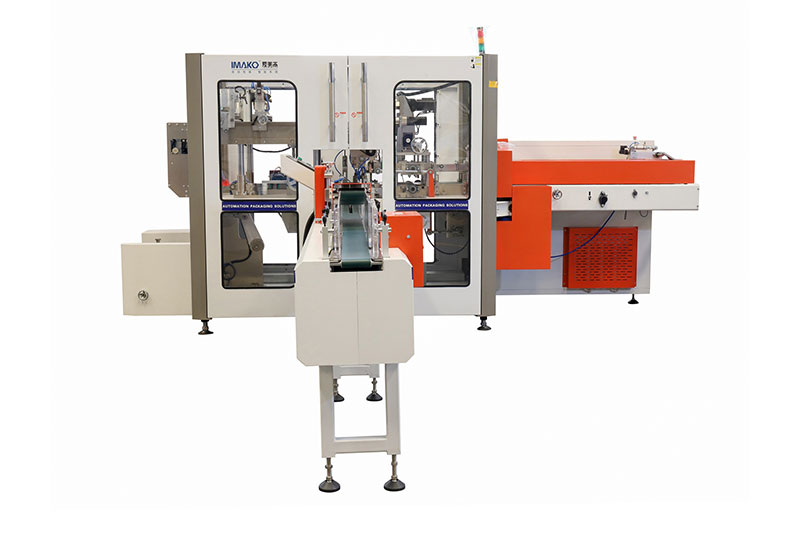

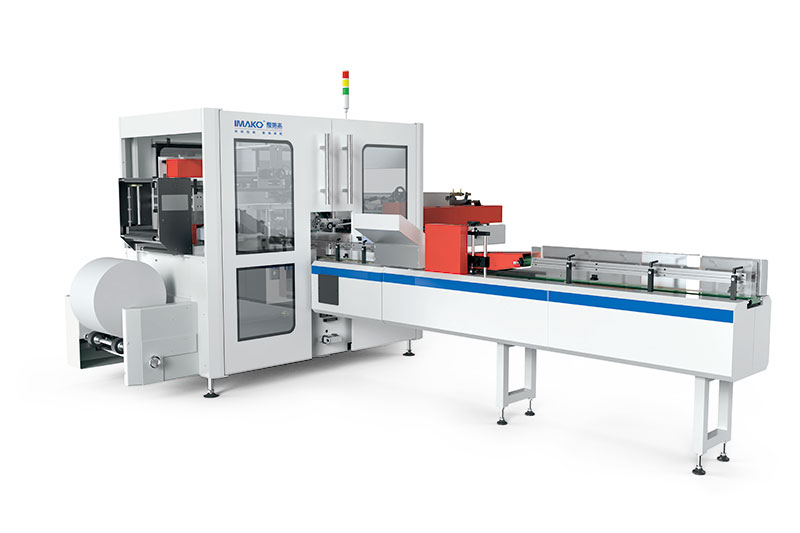

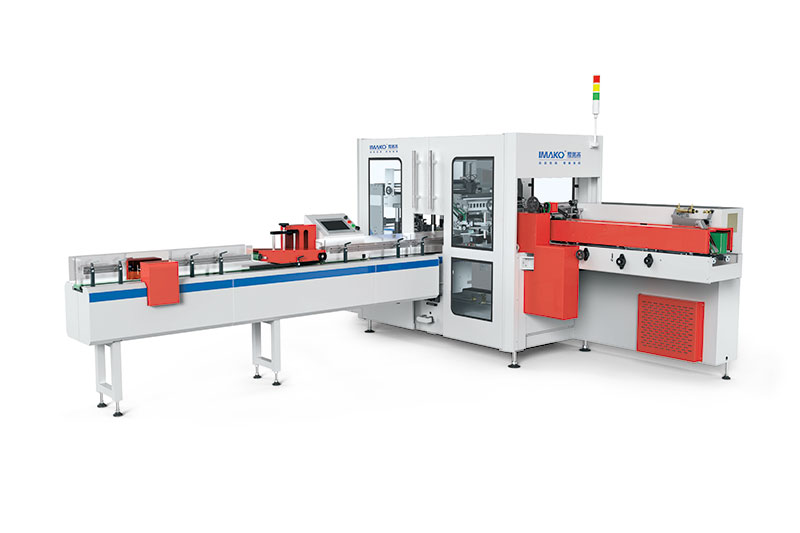

Full Servo High Speed Facial Tissue Wrapping Machine for Individual Pack, TP-T450/T450A
- Output:
220 packages/min
(TP-T450A)
200 packages/min
(TP-T450) - Total power: 12.42 kW

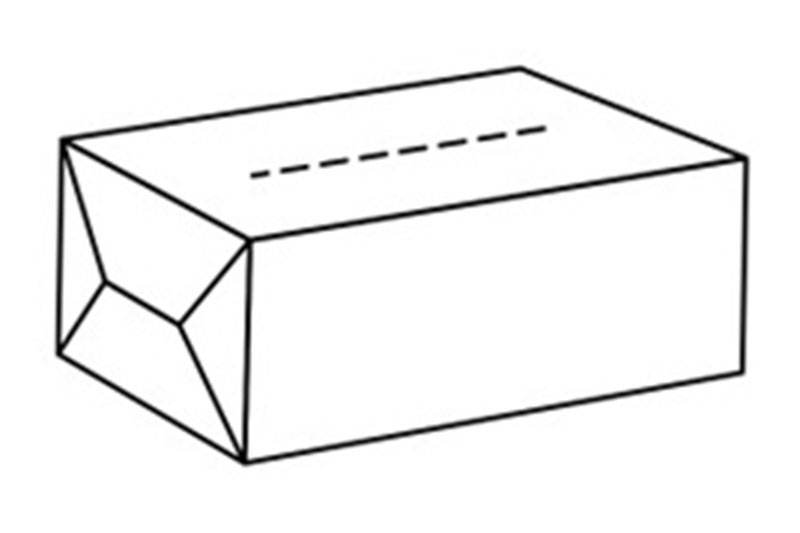

- Packaging dimension:
Length: 95-210mm
Width: 80-100mm
Height: 30-100mm
Features

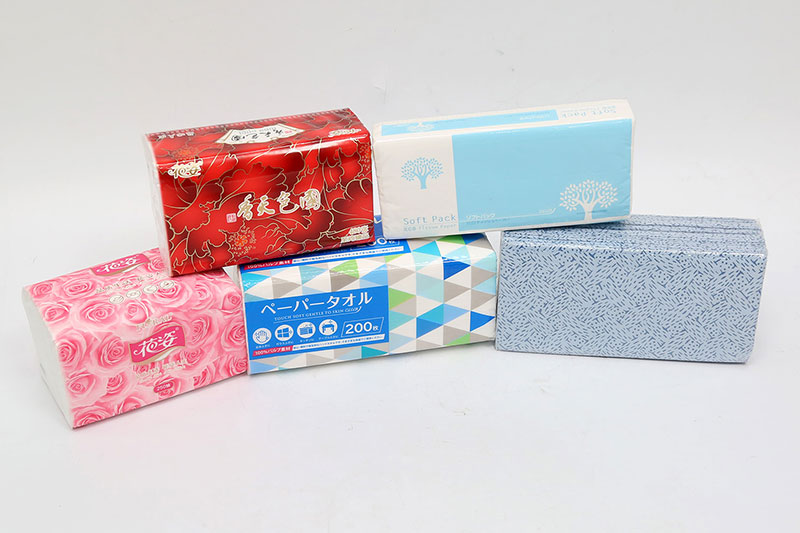

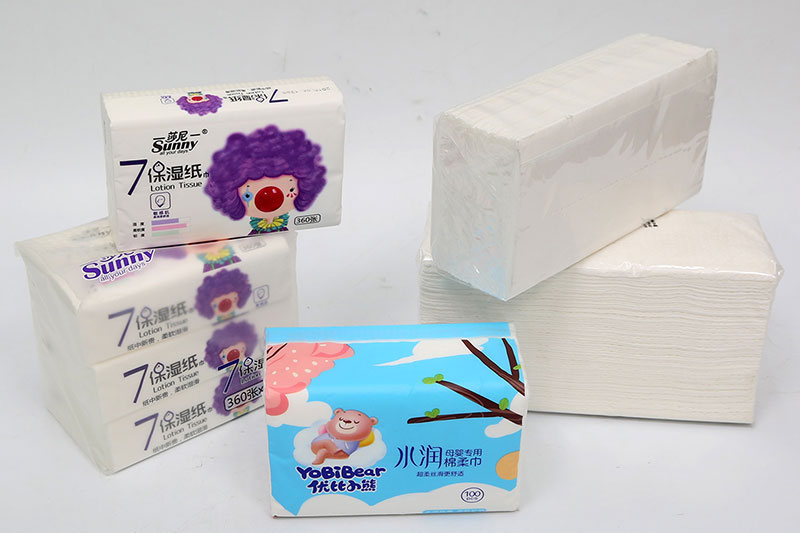

- This servo-driven high-speed tissue wrapping machine is particularly designed for automatic single-pack packaging of facial tissue paper, V-fold hand towel paper, napkins or non-woven fabric, dust-free paper by plastic film.
- This tissue wrapping machine can work at high speed while keeping noise at a low level. It features wide application, and easy maintenance, operation and changeover. In addition, the operation cost is very low.
- This tissue wrapper is known for multiple advanced components and functions: manual pulse generator, distortion removal through hooking up, pressing and slapping, jam detection and automatic speed adjustment, excessive height and length alarm and emergency stop, tails feeder torque overload protection, control rod, board seeding and movable edge guide are equipped with cylinder overload protection function.
Specifications
| Application | Facial tissue, V-fold hand towel, napkins | Power supply | 380V/50 Hz | |
| Feeding mode | ASF automatic feeding system | Total power | 12.42 kW | |
| Machine dimensions | L4150*W4046*H1600 mm | Noise level | ≤85 dB | |
| Machine weigh | 3000 kg | Cut off | Straight line / Oval Shape | Alternative |
| Film thickness | 0.04-0.05 mm | Packaging material | CPP、PE&Complex Film | |
| Packaging film | Diameter: ≤500，Width: 340 | Control system | 16-axis servo positioning controller | |
| Compressed air | Air source: 0.5 MPa | Special configuration | Three Units of Shaping Function, Electronic Handwheel Regulator (All units can operate independently) | |
Details
IMAKO is a company entirely focused on the manufacture of automated making and packaging equipment for tissue industry. We always aim at developing user-oriented innovative solutions for worldwide tissue paper convertors to solve their tissue paper production & packaging and toilet paper packaging needs. To become a global advanced machine manufacturer, we also develop optimal packaging solutions for personal care products apart from tissue converting industry. All of our tissue making and packaging machines and hygiene product packaging machines like baby diaper packaging machine, wet wipes packaging machine and sanitary pad packaging machine are built to deliver easy operation, high productivity, quick size changeover and simple maintenance. If you are still struggling to choose the right tissue making and packaging machine, we'll be happy to help you with your tissue production needs.
