Napkin Bundler, TP-B35TE
Automatic Multi-pack Wrapping Machine for Folded Paper Towel
TP-B35TE napkin bundler is an automatic multi-pack packing machine designed for packaging folded paper napkins, paper hand towels, facial tissues, etc. The processes including tissue arrangement, counting, stacking, insertion, bag feeding, bag opening, sealing and cut off are all carried out by using servo drive, efficiently ensuring easy operation and simple maintenance.
20 bundles/min
Output
20.6kW
Total power
Length: 120mm
Width: 90-110mm
Height: 60-100mm
Width: 90-110mm
Height: 60-100mm
Packaging dimension
(individual pack)
(individual pack)
Packaging Style
Examples
Specifications
| Model | TP-B35TE |
| Application | To overwrap multiple packs of folded tissues and paper towels |
| Arrangement | Widthwise |
| Package configuration | 1-ply (1-3)×(3-5) 2-ply (2-3)×(3-5) 3-ply (2-3)×(3-5) (According to individual pack size) |
| Design speed | 25 bundles/min (depending on product size) |
| Working speed | ≤20 bundles/min (depending on product size) |
| Installation of packaging material | Bag racks mounted at both sides |
| Bag storage | ≤600 pre-made bags |
| Individual pack size | Length: 120mm Width: 90-110mm Height: 60-100mm |
| Machine weight | 6500kg |
| Packaging material | CPP, PE film |
| Film thickness | 0.05mm |
| Compressed air | Pressure 0.6mpa Air flow 300L/min |
| Power supply | 380V/50Hz |
| Motion control | 16-shaft servo positioning control, servo drive control |
| Transmission mode | Servo motor belt-drive transmission |
| Machine color & surface treatment | Dark grey, electrostatic coating |
| Bag type | Pre-made bag with holes |
Features
- Central vacuum supply is adopted for efficient reduction of power consumption;
- Intelligent heat sealing system, can accommodate various packaging materials while offering good sealing effect and high stability;
- Designed with various functions like automatic rejection of unopened bags, air source management, fault alarm and display, servo overload protection;
- Able to pack tissues in one, two or three stacks, easy size changeover, simple maintenance and high efficiency;

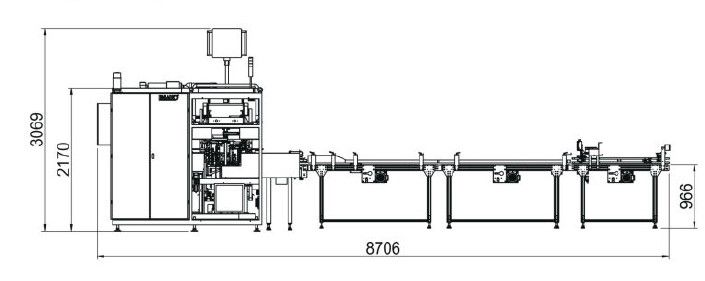

Diagram
