Facial Tissue Bundler, TP-B20TA/B30T
Automatic Packaging Machine for Folded Paper Towel (Bundle Pack)
TP-B20TA/B30T facial tissue bundler is an automatic tissue packaging machine suitable for bundle packing single pack of folded facial tissues, paper napkins and paper hand towels. It adopts servo drive to control processes including arrangement, counting, pushing, bag opening and insertion of multiple packs into bag, providing easy operation and simple maintenance.
21 bundles/min (TP-B20TA)
28 bundles/min (TP-B30T)
28 bundles/min (TP-B30T)
Output
18kW
Total power
Length: 180-500mm
Width: 120-420mm
Height: 85-110mm
Width: 120-420mm
Height: 85-110mm
Packaging dimension (bundle pack)

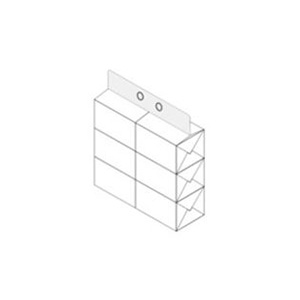

Packaging Style
Examples
Specifications
| Model | TP-B20TA/B30T |
| Application | To overwrap multiple packs of folded tissues and paper towels |
| Package configuration | 1×3, 1×4, 1×5, 1×6 2×3, 2×4, 2×5, 2×6 3×3, 3×4, 3×5, 3×6 (one-key size changeover) |
| Design speed | 21 bundles/min |
| Working speed | ≤18 bundles/min (depending on product size) |
| Installation of packaging material | Bag racks mounted at both sides |
| Bag storage | ≤400 pre-made bags |
| Individual pack size (L×W×H) | (180-500)×(120-420)×(85-100)mm |
| Machine weight | 1800kg |
| Packaging material | CPP, PE film |
| Film thickness | 0.05mm |
| Compressed air | Pressure ≥0.6MPa Air flow ≥30L/min (prepared by user) |
| Power supply | 380V, 50HZ |
| Motion control | 7-shaft servo positioning control |
| Optional | Film tubing unit |
Features
- Central vacuum supply is adopted for efficient reduction of power consumption;
- Intelligent heat sealing system, can accommodate various packaging materials while offering good sealing effect and high stability;
- Designed with functions of bag opening detection, air source management, fault alarm and display, servo overload protection;
Diagram
