Wet Wipe Packaging Machine, DP-T55/FA-P55
Automatic Bagging Machine for Wet Wipes, Cotton Tissues and Sanitary Pads
DP-T55/FA-P55 automatic packaging machine is suitable for packing soft disposable products such as wet wipes, cotton tissues and sanitary pads. It can accomplish processes of bagging, bag filling and sealing. The bag forming is carried out in one-pass so that the personal care products can be directly filled into bag without contacting with external environment, thus enabling the packaging process more hygienic while improving the packaging efficiency. Besides, we are able to slightly modify the bag size and bag volume according to customers' requirements, to satisfy their individual packaging needs while achieving the optimal packaging effect.
DP-T55
- Output: 55 packages/min
- Total power: 24kW
- Packaging dimension:
Length: 95-210mm
Width: 65-115mm (extendable to 150mm)
Height: 28-85mm
FA-P55
- Output: 55 packages/min
- Total power: 12kW
- Packaging dimension:
Length: 95-210 mm
Width: 65-115mm
Height: 28-85mm
Examples
Standard Configurations
- Consistent sealing time
- Automatic alarming and stopping when two packs are in-fed
- Automatic detection of film roll
Specifications
| Model | | |
| Application | Wet wipes, cotton tissues and sanitary pads | |
| Feeding method | Automatic feeding | Manual feeding (can be connected with palletizer) |
| Design speed | 60 packages/min (depending on product size) | |
| Working speed (individual pack) | ≤55 packages/min (depending on product size) | |
| Quantity of molds | 3 sets in standard configuration (according to customer-specific package size) | |
| Machine weight | ≤2500kg | |
| Packaging material | PE, CPP, OPP and other lamination films | |
| Film thickness | 0.04-0.08mm | |
| Max. diameter of film roll | 600mm | |
| Max. width of film roll | 110mm | |
| Film core diameter | 76mm (international standard) | |
| Compressed air | Pressure ≥0.5MPa (prepared by user) | |
| Power supply | 380V/50Hz (according to national standard) | |

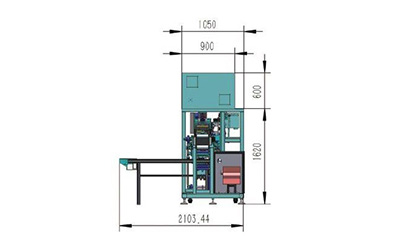

Diagram
DP-T55
FA-P55
