Toilet Roll Bundler, TP-B30R
Automatic Wrapping Machine for Toilet Paper Roll (Bundle Pack)
TP-B30R toilet paper roll bundler is an automatic wrapping machine suitable for packaging multiple packs of toilet paper rolls and kitchen tissue rolls. It adopts servo drive to control processes including tissue roll arranging, counting, insertion of multiple packs into bag and bag conveying, providing easy operation and simple maintenance.
22 packages/min
Output
20.2kW
Total power
Length: 170-660mm
Width: 180-260mm
Height: 85-170mm
Width: 180-260mm
Height: 85-170mm
Packaging dimension:
Packaging Style
Examples
Specifications
| Model | TP-B30R |
| Application | Packaging of either core or coreless toilet paper rolls and kitchen tissue rolls |
| Feeding method | ASF automatic dual-lane feeding system |
| Design speed | 25 packages/min (depending on product size) |
| Working speed | 15-22 packages/min (depending on product size) |
| Installation of packaging material | Bag racks mounted at both sides |
| Gusset forming | Vacuum mold forming |
| Cut off | Zigzag cutting edge |
| Bag storage | ≤600 pre-made bags (or customized) |
| Machine weight | 3400kg |
| Packaging material | PE, CPP film |
| Film thickness | 0.05mm |
| Packaging specifications (suitable for core/coreless tissue rolls) | Length: 90-170mm Diameter (φ): 90-105mm 2×3/2×4/2×5/2×6 |
| Length: 90-170mm Diameter (φ): 110-125mm 2×3/2×4/2×5 | |
| Air compression | Pressure: 0.6MPa (prepared by user) |
Features
- Central vacuum supply is adopted for efficient reduction of power consumption;
- Intelligent heat sealing system, can accommodate various packaging materials while offering good sealing effect and high stability;
- Designed with various functions like automatic rejection of unopened bags, air source management, fault alarm and display, servo overload protection;

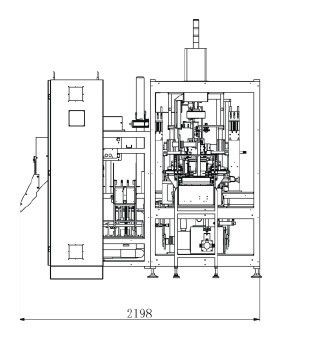

Diagram
