Automatic Case Packer, DP-C20
Automatic Case Packing Machine for Diapers and Potty Training Pants
DP-C20 automatic case packer is an effective solution for packing diapers and training pants into carton boxes. It adopts PLC system and 7-shaft servo motion control to achieve precise controlling of automatic operations including feeding, counting, stacking, carton loading, carton erecting and sealing.
10 cartons/min
Output
12kW
Power
Length: 150-300mm
Width: 230-450mm
Height: 270-450mm
Width: 230-450mm
Height: 270-450mm
Packaging dimension
Examples
Specifications
| Model | DP-C20 |
| Application | Packaging of multiple packs of diapers and training pants into carton box |
| Feeding mode | Automatic single-lane intelligent feeding |
| Max. feeding speed | 30 bags/min |
| Package configuration (layer × row × column) | (1-2)×(1-2)×(3-4) |
| Design speed | 12 carton/min (depending on product size) |
| Working speed | 10 carton/min (within standard specifications) |
| Carton type | 3/5 ply corrugated board, 3-5mm thickness, required to be preformed with folding line |
| Carton placement | Flatwise |
| Carton storage | ≤100 cartons (double-station) |
| Carton sealing | Adhesive tape |
| Machine weight | 4000kg |
| Compressed air | ≥0.6MPa |
| Power supply | 380V/50Hz |
| Motion control | Servo/inverter/cylinder positioning control |
Features
- Using servo drive to control diaper stacking, carton erecting and sealing, providing easy operation and simple maintenance;
- Automatic fault diagnosis and identification, allowing to quickly locate the fault and show it on the display, significantly facilitating the equipment maintenance;
- Monitor system automatically detects whether there is shortage of packaging bags or lack of products;
- Automatic case sealing with adhesive tapes, ensuring tight and secure seals while providing superior look;
- Equipped with functions of air source management, fault alarm and display, servo overload protection

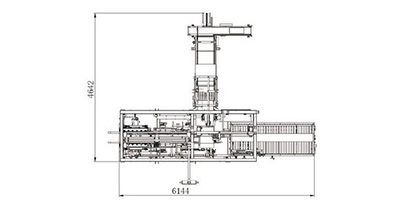

Diagram
