Tissue Wrapping Machine, TP-T400
This product has been discontinued and removed from our shelves.
Servo-driven Packaging Machine for Folded Paper Towel (Individual Pack)
TP-T400 servo-driven tissue wrapping machine is primarily constructed for automatic packaging of folded tissue products like facial tissues, paper towels, V-fold napkins, paper serviettes, multifold hand towels. It utilizes plastic film to pack folded tissues individually.
130 packages/min
Output
16kW
Power
Length: 95-210mm
Width: 30-100mm
Height: 30-100mm
Width: 30-100mm
Height: 30-100mm
Packaging dimension
Packaging Style

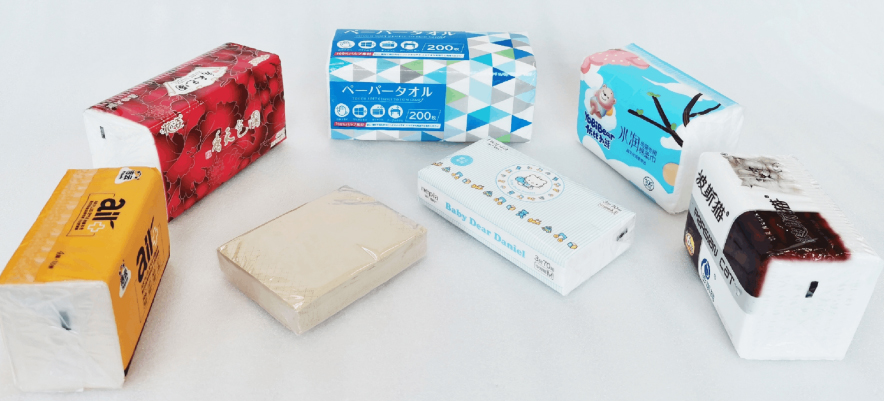

Examples
Specifications
| Model | TP-T400 |
| Tissue arranging and feeding mode | Smart automatic tissue arranging, 4-section flexible feeding mode |
| Design speed | 140 packages/min |
| Working speed | 130 packages/min |
| Total power | 12kW |
| Packaging dimension | Length: 95-210mm Width: 30-100mm (extendable to 150mm) Height: 30-100mm (or customized) |
| Quantity of molds | 3 sets in standard configuration (according to customer-specific package size) |
| Machine weight | ≤ 2500kg |
| Packaging material | CPP, PE film |
| Film thickness | 0.35-0.05mm |
| Max. diameter of film roll | 500mm |
| Film core diameter | 76mm (international standard) |
| Compressed air | Air source: ≥0.5MPa (prepared by user) |
| Power supply | 380V/50Hz (According to national standard) |
Features
- 15 sets of serve drives to control processes including feeding, arranging, film roll holding, film tensioning, film cut-off, etc.;
- Exceptional structure design enables the machine to run stably at high speed, with low noise level;

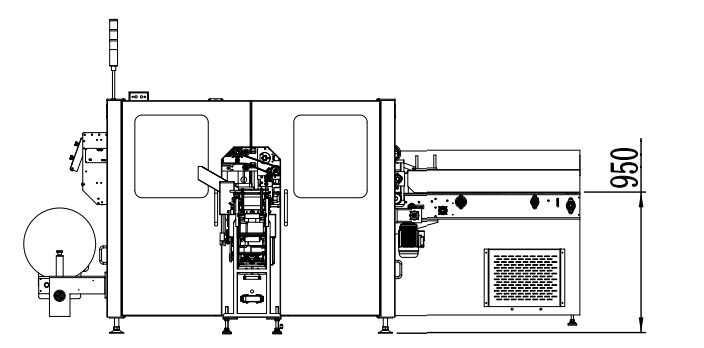

Diagram
